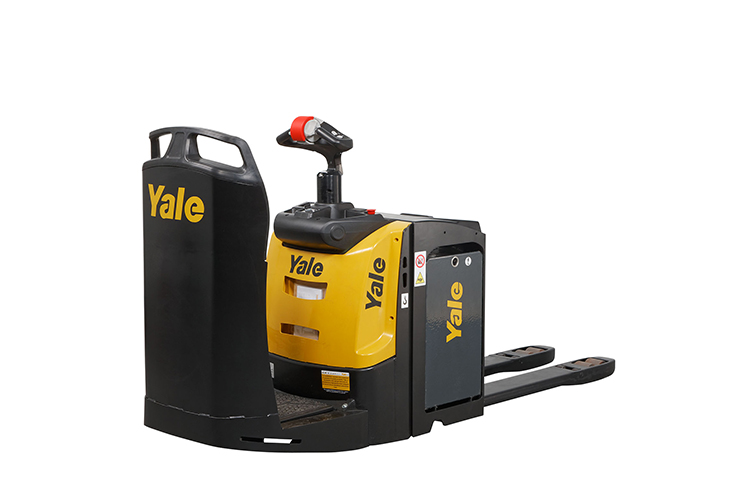

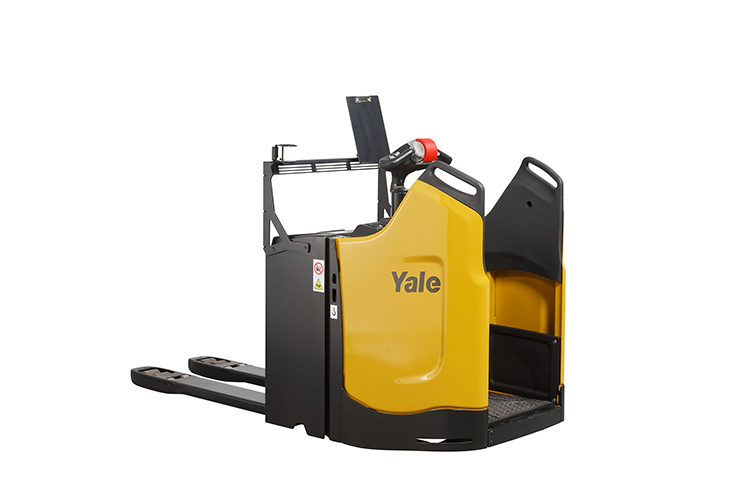

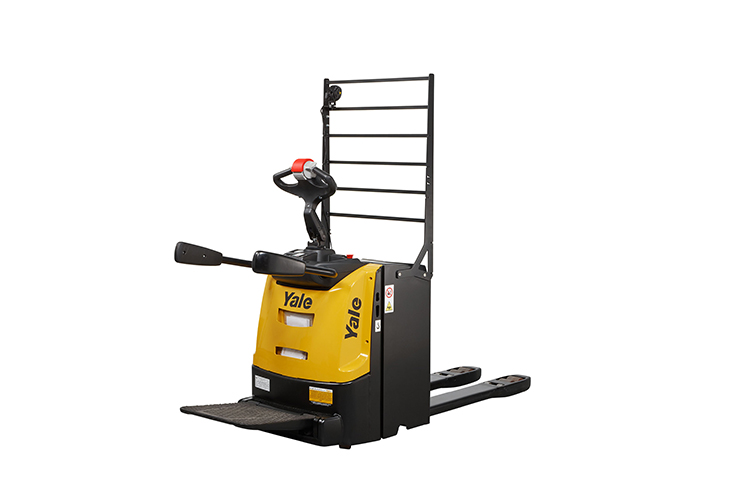

MP20-30X Platform Low Lift Pallet Truck

Designed around the needs of the operator

Provides performance enhancing options and standard features that increase productivity and reduces operational costs.

  • Increased productivity
  • Ergonomic tiller head and controls
  • Large operator platform
  • Exceptional manoeuvrability
  • Maintenance free

MODELS

MP20-30X

CAPACITY

2000-3000kg

Downloads

The MPX Series enables dependable, efficient movement of loads at every stage of horizontal pallet handling and it’s also Lithium-ion ready. Provides performance enhancing options and standard features that increase productivity and reduces operational costs.

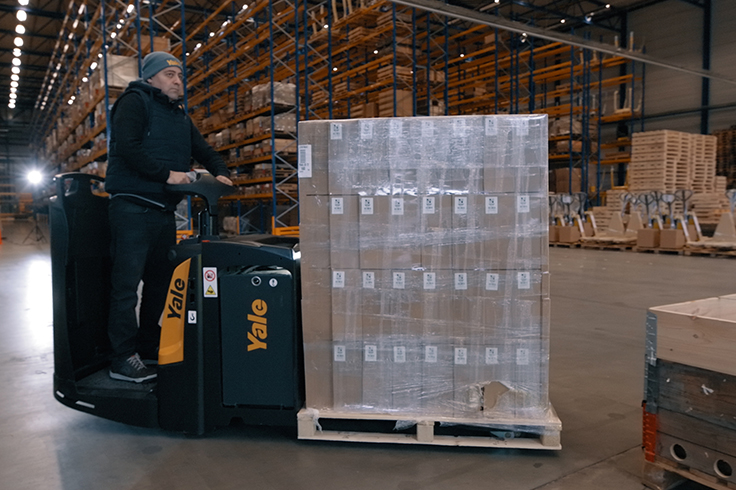

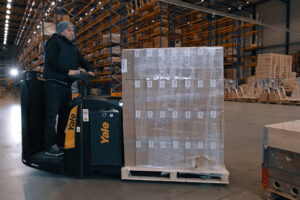

Increased productivity

Impressive traction speed up to 13km/h unladen and 9.7km/h laden on the 2.0T and 2.5T trucks, combined with progressive speed reduction, allows operators to move loads quickly and efficiently.

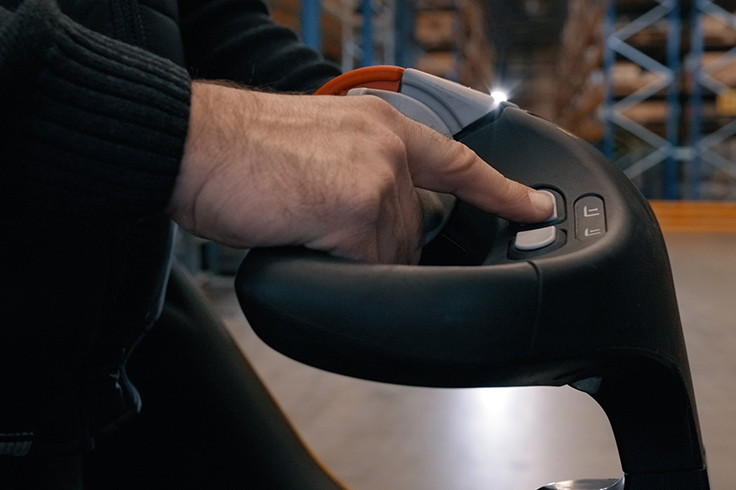

Ergonomic tiller head and controls

The tiller head has an ergonomic shaped handle with integral hand guard and spring assisted to return automatically to the vertical position. Whilst the large, low-effort butterfly buttons control travel direction, speed and the electromagnetic brake.

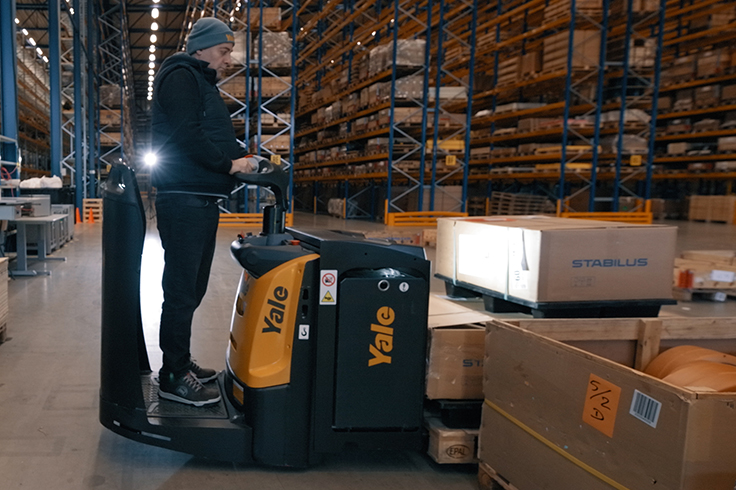

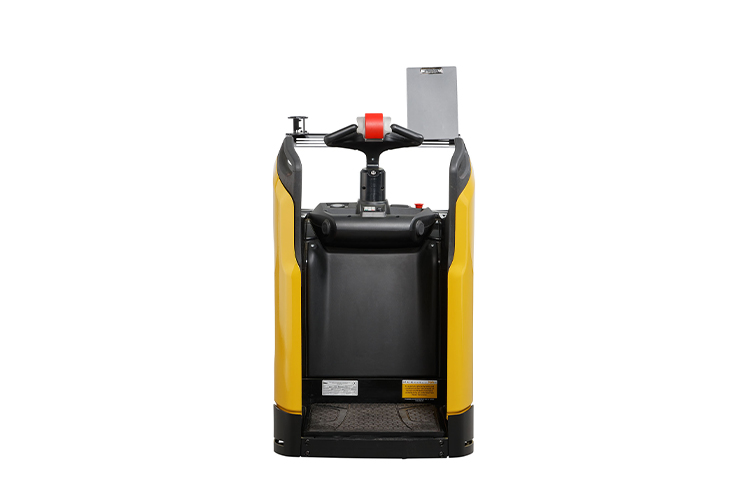

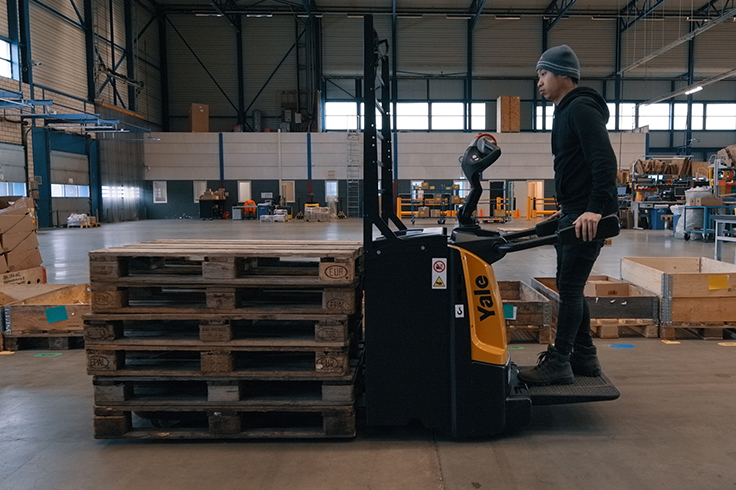

Large operator platform

The large operator platform allows the operator to find their own comfortable driving position and has an “operator on board” sensor, preventing truck operation when no driver is present

Exceptional manoeuvrability

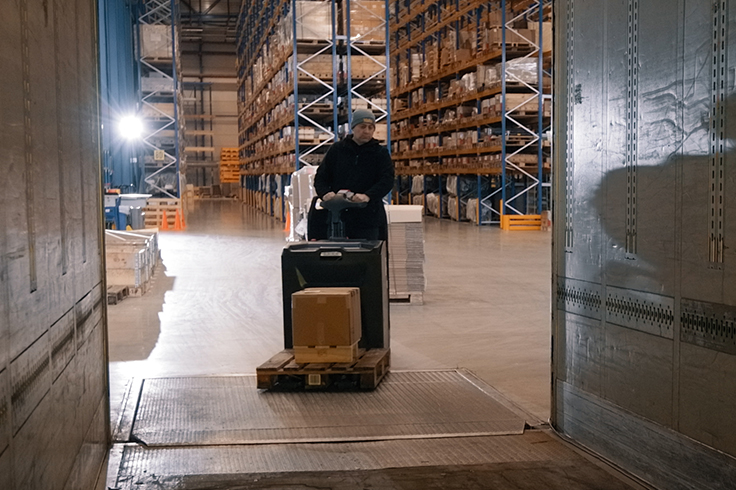

Minimum effort is required to manoeuvre the truck, so the operator can work with less effort and arm movement, reducing fatigue and increasing productivity. The 750mm width allows the handling of loads in tight spaces, such as inside containers or on lorry trailers.

Maintenance free

The maintenance-free motor (inspection intervals required every 1000 operating hours) provides low-cost long operating life.

Model Load capacity Lift Height AST (wide / long) Battery Capacity Weight
M30X platform with side protection 3000kg 120mm 2902 / 2816mm 24V / 315-500Ah(V/Ah) 840kg
MP20X 2000kg 120mm 2421 / 2335mm 24V / 210 – 500Ah(V/Ah) 678kg
M30X 3000kg 120mm 2492 / 2406mm 24V / 315-500Ah(V/Ah) 785kg
MP25X platform with rear protection 2500kg 120mm 2998 / 2912mm 24V / 315-500Ah(V/Ah) 824kg
MP20X platform with rear protection 2000kg 120mm 2998 / 2912mm 24V / 210 – 500Ah(V/Ah) 807kg
M30X platform with rear protection 3000kg 120mm 2998 / 2912mm 24V / 315-500Ah(V/Ah) 824kg
MP25X 2500kg 120mm 2492 / 2406mm 24V / 315-500Ah(V/Ah) 785kg
MP25X platform with side protection 2500kg 120mm 2902 / 2816mm 24V / 315-500Ah(V/Ah) 840kg
MP20X platform with side protection 2000kg 120mm 2902 / 2816mm 24V / 210 – 500Ah(V/Ah) 823kg
