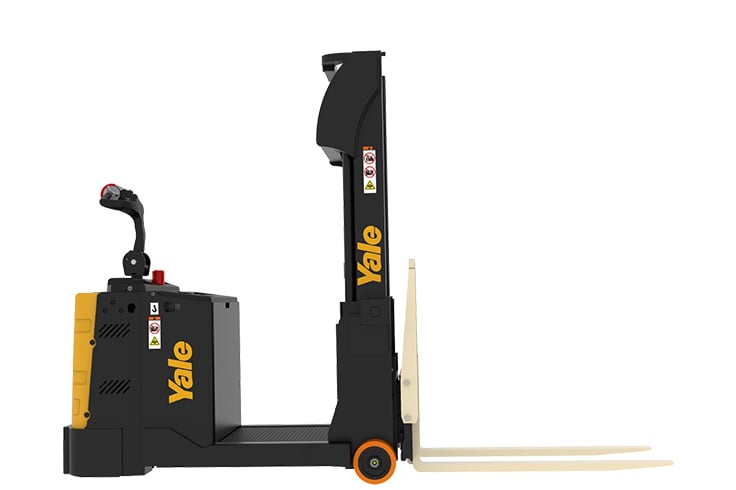

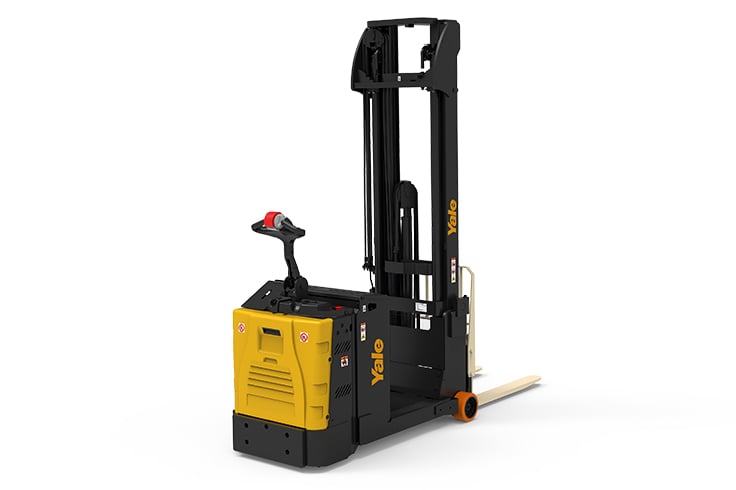

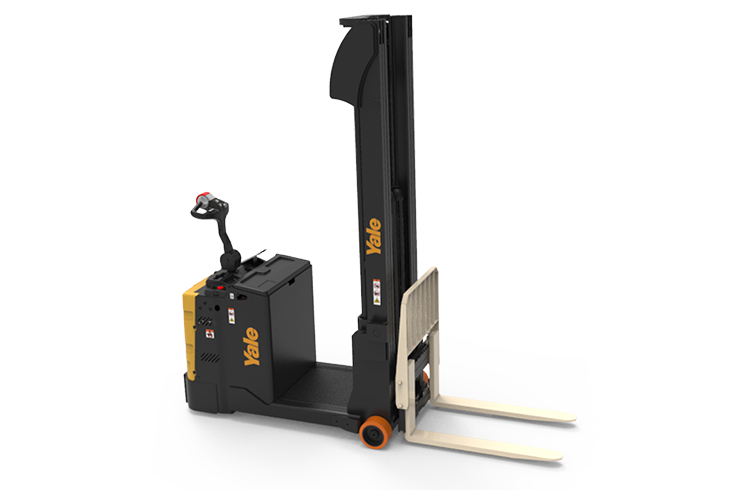

MC10-15 Counterbalanced Stacker

Ideal for stacking of goods in low to medium height racking.

• Ergonomic tiller head
• Multifunction display
• Robust and durable
• Energy efficiency

MC10-15

1000-1500kg

MC Series Spec Sheet

MC Robotics Series Spec Sheet

Yale Products Range Guide

Ideal for stacking of goods in low to medium height racking. The MC series with its high mounted reversible tiller arm can be used for applications where stackers with support arms cannot operate e.g. lifting closed pallets (with bottom boards) directly from the floor

Ergonomic tiller head

The high mounted tiller arm features an ergonomic shaped handle and integral hand guard. Large, low-effort, butterfly buttons control direction of travel, speed and the electromagnetic brake – all without the operator’s hand moving from the handle. Left hand buttons operate slow speeds for fine positioning, right hand buttons control proportional lifting and lowering, the horn is on top.

Multifunction display

The multi functional dash-board display provides information on the status of the truck and alarm conditions should they occur. Operator information includes the battery discharge indicator a d odometer. The red mushroom shaped button can be activated to stop the truck immediately in case of emergency.

Masts

A range of masts are available to suit different applications including two stage LFL and three stage FFL configuration as standard.

Energy efficiency

The 4kW AC motor provides instant response to forward and reverse traction. Whilst the maintenance free motor only requires an inspection every 1000 hours and provides low operational costs. The 3kW DC lift motor provides power to match the trucks application. Electronic performance parameters can be matched to the application by a service engineer.
